- Place of Origin: Taian,China
- Brand Name: jinchihuayi
- Model Number: LDPE EF3
Performance feature:

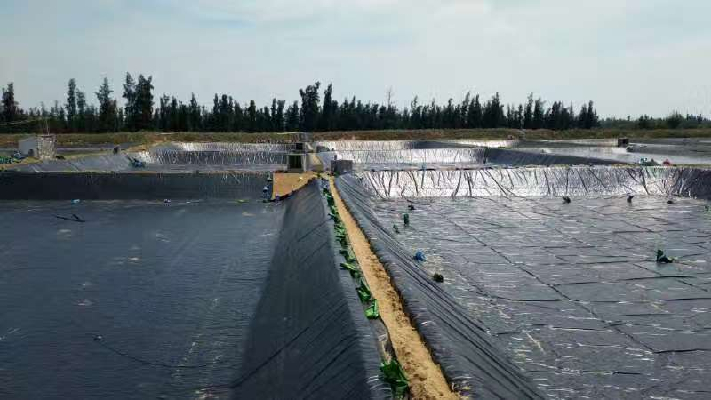

Jinchi flexible smooth surface earthwork film is excellent earthwork film produced by using special formula, selecting special density high-pressure polyethylene (LDPE) or EVA (ethylene-vinylacetate copolymer) and LLDEP ( linear low density polyethylene ) resin and suing advanced technologic formula, and has very high unidirectional and suitable for works with uneven sedimentation or large local sedimentation, for example, gangue soaking yard, garbage landfill and other works with high requirements on material extension performance and puncture resistance. Flexible smooth surface earthwork film can be used for construction of some environments with complex shape and deformation, for example, waterproof of culvert and canal,etc.
Product Application :
Width : 2m - 12m ;
Thickness : 0.2mm - 3.0 mm
Implementation standard : GB/T17643-1998
Product Specification ( New Standard ) :
| Low Density Polyethylene Geomembrane ( GL-1 ) | ||||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||||
| Thickness (mm) 厚度 | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.939 | ||||||||
| 2 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥6 | ≥9 | ≥14 | ≥19 | ≥23 | ≥28 | ≥37 | ≥47 | ≥56 |
| 3 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥560 | ||||||||
| 4 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥27 | ≥45 | ≥63 | ≥90 | ≥108 | ≥135 | ≥180 | ≥225 | ≥270 |
| 5 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥52 | ≥84 | ≥135 | ≥175 | ≥220 | ≥260 | ≥350 | ≥435 | ≥525 |
| 6 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||||
| 7 | Carbon black dispersity 碳黑分散性 | |||||||||
| Linear Low Density Polyethylene Geomembrane ( GL-2 ) | ||||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||||
| Thickness (mm) 厚度 | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.939 | ||||||||
| 2 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥6 | ≥9 | ≥14 | ≥19 | ≥23 | ≥28 | ≥37 | ≥47 | ≥56 |
| 3 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥560 | ||||||||
| 4 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥27 | ≥45 | ≥63 | ≥90 | ≥108 | ≥135 | ≥180 | ≥225 | ≥270 |
| 5 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥52 | ≥84 | ≥135 | ≥175 | ≥220 | ≥260 | ≥350 | ≥435 | ≥525 |
| 6 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||||
| 7 | Carbon black dispersity 碳黑分散性 | |||||||||
- Place of Origin: Taian,China
- Brand Name: jinchihuayi
- Model Number: LDPE EF3
Product Specification ( New Standard ) :
| Linear Low Density Polyethylene Geomembrane ( GL-2 ) | ||||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||||
| Thickness (mm) 厚度 | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.939 | ||||||||
| 2 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥6 | ≥9 | ≥14 | ≥19 | ≥23 | ≥28 | ≥37 | ≥47 | ≥56 |
| 3 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥560 | ||||||||
| 4 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥27 | ≥45 | ≥63 | ≥90 | ≥108 | ≥135 | ≥180 | ≥225 | ≥270 |
| 5 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥52 | ≥84 | ≥135 | ≥175 | ≥220 | ≥260 | ≥350 | ≥435 | ≥525 |
| 6 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||||
| 7 | Carbon black dispersity 碳黑分散性 | |||||||||
| Linear Low Density Polyethylene Geomembrane ( GL-2 ) | ||||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||||
| Thickness (mm) 厚度 | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.939 | ||||||||
| 2 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥6 | ≥9 | ≥14 | ≥19 | ≥23 | ≥28 | ≥37 | ≥47 | ≥56 |
| 3 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥560 | ||||||||
| 4 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥27 | ≥45 | ≥63 | ≥90 | ≥108 | ≥135 | ≥180 | ≥225 | ≥270 |
| 5 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥52 | ≥84 | ≥135 | ≥175 | ≥220 | ≥260 | ≥350 | ≥435 | ≥525 |
| 6 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||||
| 7 | Carbon black dispersity 碳黑分散性 | |||||||||
