Product Details
  • Place of Origin:  Taian, China
  • Brand Name:  jinchihuayi
  • Model Number:  EGA30-30

Product overview:

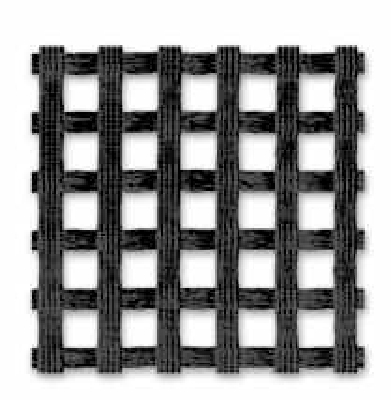

Jinchi glass fiber grid is plane network-shaped material produced by selecting excellent reinforcing non-alkali glass fiber, weaving it into substrate by foreign advanced warp knitter, adopting weft and wrap oriented structure to make full use of strong force of yarn in fabric, improving its chemical performance to make it have good tensile strength, and tearing and creep resistance and making excellent modified asphalt coating treatment. It highlights the composite performance between it and asphalt owing to following similar compatibility principle, and adequately protects glass fiber substrate, greatly improving the abrasion resistance and shear resistance of substrate, thereby being used for pavement reinforcement, preventing crack rut and other highway distresses from producing, and solving the problem of asphalt pavement reinforcement.

Product feature:

The product features such as high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance, and long lifespan, which can reinforce pavement, and prevent pavement track fatigue cracking, tensile crack and under reflection crack of pavement, and can disperse pavement bearing stress, and prolong pavement service life, with high tensile strength, low elongation without long-term creep, good physical and chemical stability, good thermal stability, fatigue crack resistance, high temperature rut resistance, and low temperature resistance shrinkage, delaying and reducing reflection crack.

Product application:

1. Old asphalt concrete pavement. It reinforces asphalt surface layer, and prevents disease.

2. Rebuilding cement concrete pavement into synthetic pavement, suppressing reflection crack caused by board shrinkage, and making reinforcement treatment of airfield runway, bridge pavement.

3. Road expansion and rebuilding works. It avoids the crack caused by old and new joint part and uneven sedimentation.

4. Soft soil foundation reinforcement treatment. It facilitates soft soil water separation concretion, restricts sedimentation effectively, makes uniform stress contribution, and improves overall strength of roadbed.

5. Shrinkage crack caused by new road semi-rigid substrate. It makes reinforcement and avoids pavement crack caused by basic crack reflection.

6. Protection of dyke and dam, seashore, and slope.

Product specification:

EGA30-30  EGA40-40  EGA50-50  EGA60-60  EGA80-80...


  • Place of Origin:  Taian, China
  • Brand Name:  jinchihuayi
  • Model Number:  EGA30-30
Item/SpecificationEGA30-30EGA40-40EGA50-50EGA80-80EGA100-100EGA125-125EGA150-150
Tensile Strength KN/m(LD)≥30≥40≥50≥60≥80≥100≥150
Tensile Strength KN/m(TD)≥30≥40≥50≥60≥80≥100≥150
Elongation Rate (LD TD)%≤2≤2≤2≤2≤2≤2≤2
Tensile Strength at 1% Elongation (LD)KN/M≥20≥32≥40≥48≥63≥81≥125
Tensile strength at 1% elongation (LD)KN/M≥20≥32≥40≥48≥63≥81≥125
N Limit Peelforce at Welded Bonded Point N≥100≥100≥100≥100≥100≥100≥100
