Product Details
- Place of Origin: Taian,China
- Brand Name: jinchihuayi
- Model Number: EF6
Performance feature:

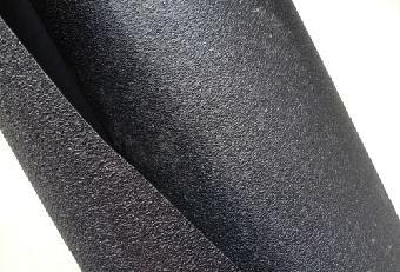

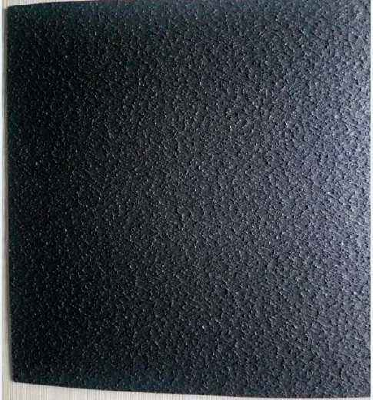

Jinchi coarse surface HDPE geomembrane is produced through blow molding by using raw resin HDPE with special formula and outstanding charcoal black light stabilizer and antioxidant. It has excellent oxidation resistance,environmental stress crack resistance, size stabilization and anti-sliding performance, and such product performances can reach or exceed GRI-GM13 standards.
Product Application :
Protective slope of garbage landfill and chemical slag yard,anti-seepage of oil tank of sewage treatment plant and oil storage base, and piling yard of gangue.
Product Specification ( New Standard ) :
| Common and High Density Polyethylene Geomembrane ( GH-1 ) | ||||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||||
| Thickness (mm) 厚度 | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.940 | ||||||||
| 2 | Tensile yield strength (vertical and horizontal) ( N/mm ) 拉伸屈服强度（纵、横向） | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
| 3 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
| 4 | Tensile Elongation ( % ) 屈服伸长率（纵、横向） | ~ | ~ | ~ | ≥11 | |||||
| 5 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥600 | ||||||||
| 6 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 |
| 7 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
| 8 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||||
| 9 | Carbon black dispersity 碳黑分散性 | |||||||||
| Smooth and High Density Polyethylene Geomembrane ( GH-2S ) | ||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||
| Thickness (mm) 厚度 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.940 | ||||||
| 2 | Tensile yield strength (vertical and horizontal) ( N/mm ) 拉伸屈服强度（纵、横向） | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| 3 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| 4 | Tensile Elongation ( % ) 屈服伸长率（纵、横向） | ≥12 | ||||||
| 5 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥700 | ||||||
| 6 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| 7 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| 8 | Tensile load stress cracking ( h ) 拉伸负荷应力开裂（切口恒载拉伸法） | ≥300 | ||||||
| 9 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||
- Place of Origin: Taian,China
- Brand Name: jinchihuayi
- Model Number: EF6
Product Specification ( New Standard ) :
| Common and High Density Polyethylene Geomembrane ( GH-1 ) | ||||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||||
| Thickness (mm) 厚度 | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.940 | ||||||||
| 2 | Tensile yield strength (vertical and horizontal) ( N/mm ) 拉伸屈服强度（纵、横向） | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
| 3 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
| 4 | Tensile Elongation ( % ) 屈服伸长率（纵、横向） | ~ | ~ | ~ | ≥11 | |||||
| 5 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥600 | ||||||||
| 6 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 |
| 7 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
| 8 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||||
| 9 | Carbon black dispersity 碳黑分散性 | |||||||||
| Smooth and High Density Polyethylene Geomembrane ( GH-2S ) | ||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||
| Thickness (mm) 厚度 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.940 | ||||||
| 2 | Tensile yield strength (vertical and horizontal) ( N/mm ) 拉伸屈服强度（纵、横向） | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| 3 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| 4 | Tensile Elongation ( % ) 屈服伸长率（纵、横向） | ≥12 | ||||||
| 5 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥700 | ||||||
| 6 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| 7 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| 8 | Tensile load stress cracking ( h ) 拉伸负荷应力开裂（切口恒载拉伸法） | ≥300 | ||||||
| 9 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||
| Linear Low Density Polyethylene Geomembrane ( GL-2 ) | ||||||||||
| Model No. 序号 | Item. 项目 | Specification 指标 | ||||||||
| Thickness (mm) 厚度 | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| 1 | Density ( g/cm3 ) 密度 | ≥0.939 | ||||||||
| 2 | Tensile Breaking Strength ( N/mm ) 拉伸断裂强度（纵、横向） | ≥6 | ≥9 | ≥14 | ≥19 | ≥23 | ≥28 | ≥37 | ≥47 | ≥56 |
| 3 | Elongation at Break ( % ) 断裂伸长率（纵、横向） | ≥560 | ||||||||
| 4 | Right angle tearing load 直角撕裂负荷（纵、横向） | ≥27 | ≥45 | ≥63 | ≥90 | ≥108 | ≥135 | ≥180 | ≥225 | ≥270 |
| 5 | Anti-puncture strength ( N ) 抗穿刺强度 | ≥52 | ≥84 | ≥135 | ≥175 | ≥220 | ≥260 | ≥350 | ≥435 | ≥525 |
| 6 | Carbon black content ( % ) 碳黑含量 | 2.0~3.0 | ||||||||
| 7 | Carbon black dispersity 碳黑分散性 | |||||||||
