- Place of Origin: Taian,China
- Brand Name: jinchihuayi
- Model Number: PLFEC-600g

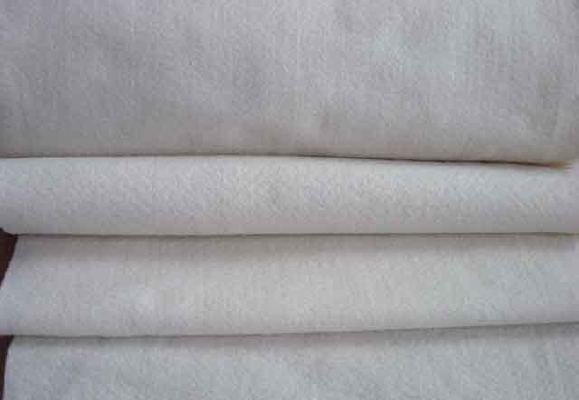

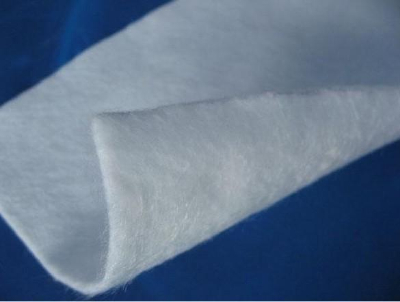

Polyester long fiber earthwork cloth
1. Operation and description :
Jinchi polyester long fiber anti-stick needle punched earthwork cloth is new building material applied in civil and soil works. It is produced by terylene long fiber netting and fixing, and its fiber layout has three-dimensional structure.
2.Performance feature :
Besides good chemical strength advantage such as tension, tearing, top breaking and puncture resistance.It has good vertical and horizontal drainage performance,good extension performance and high chemical functions such as biology,acid, alkali and ageing resistance. It also have wide hole diameter range, bending space distribution and good seepage performance and filtering performance.
3.Product Application :
It’s suitable for various fields such as earthwork film protection and coverage of garbage landfill,water conservancy, hydropower, highway,railway,port,stadium,tunnel,environmental protection, chemical slag yard and gangue dike, and plays various functions such as separation, filtering, drainage, reinforcement, protection and enclosure.
Item 项目 | Specification 指标 | |||||||||
Breaking Strength KN/m 标称断裂强度 | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
1 | Vertical and horizontal Breaking Strength (kN/m) ≥ 纵横向断裂强度 | 4.5 | 7.5 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 40.0 | 50.0 |
2 | Vertical and horizontal Elongation % 纵横向标准强度对应伸长率 | 40~80 | ||||||||
3 | CBR Mullen Burst Strength (kN) ≥ CBR顶破强力 | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 5.4 | 7.9 | 8.5 |
4 | Vertical and horizontal Tear Strength (kN) ≥ 纵横向撕破强力 | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
5 | Equivalent aperture O90(O95)/mm 等效孔径 | 0.05~0.20 | ||||||||
6 | Vertical permeability Coefficient (cm/s) 垂直渗透系数 | K x (10-1~10-8), k=1.0-9.9 | ||||||||
7 | Thickness /mm ≥ 厚度 | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
8 | Width varation % 幅宽偏差 | -0.5 | ||||||||
9 | Quality deviation per unit area /% 单位面积质量偏差 | -5 |
- Place of Origin: Taian,China
- Brand Name: jinchihuayi
- Model Number: PLFEC-600g
Product Specification ( New Standard ) :
Item 项目 | Specification 指标 | |||||||||
Breaking Strength KN/m 标称断裂强度 | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
1 | Vertical and horizontal Breaking Strength (kN/m) ≥ 纵横向断裂强度 | 4.5 | 7.5 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 40.0 | 50.0 |
2 | Vertical and horizontal Elongation % 纵横向标准强度对应伸长率 | 40~80 | ||||||||
3 | CBR Mullen Burst Strength (kN) ≥ CBR顶破强力 | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 5.4 | 7.9 | 8.5 |
4 | Vertical and horizontal Tear Strength (kN) ≥ 纵横向撕破强力 | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
5 | Equivalent aperture O90(O95)/mm 等效孔径 | 0.05~0.20 | ||||||||
6 | Vertical permeability Coefficient (cm/s) 垂直渗透系数 | K x (10-1~10-8), k=1.0-9.9 | ||||||||
7 | Thickness /mm ≥ 厚度 | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
8 | Width varation % 幅宽偏差 | -0.5 | ||||||||
9 | Quality deviation per unit area /% 单位面积质量偏差 | -5 |
